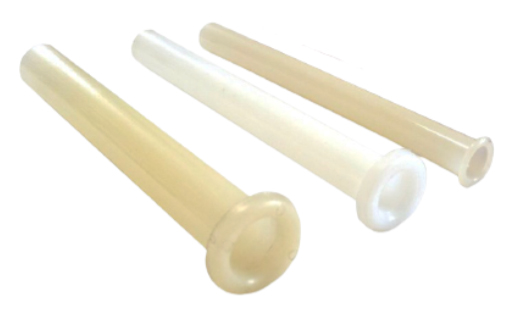

Plastic Tube Inserts

SHINGARE make Nylon Tube inserts popularly used in industry to provide protection for tube ends of heat exchangers mainly (Shell and Tube type heat exchanger). The End of shell and tube type heat exchanger is mainly subject to erosion, corrosion, and impingement. Such corrosion is quick and substantial in marine industries due to use of salt water.

The Main Troubles Taking Place In Shell & Tube Heat Exchanger Are Briefly Described Below:

» Thermal wear and corrosion of tube ends
» Cracking due to induced thermal Stress
» Crevice Corrosion in confined & non accessible parts such as cracks and seams
» Pitting or Creation of small holes on tube surface
» Grooving caused due to Ammonia
» Inappropriate Tube expansion
» Weakened Tube to tube sheet joints

SHINGARE Industries Pvt Ltd has emerged out with the most effective solution for all the above troubles. We have introduced the most cost-effective tube repair solution that is known as SHINGARE make Tube Inserts. Also known as Ferrules or tube end Shield/Seal or Tube End Protector.

Some sizes also available in 4" lengths. Inquire about additional sizes.

Part Number	Tube O.D	Tube Gauge	Tube Wall Thickness	Tube I.D	Insert Length
STIN-58186	5/8"	18	0.049	0.527	6"
STIN-58206	5/8"	20	0.035	0.555	6"
STIN-34166	3/4"	16	0.065	0.620	6"
STIN-34186	3/4"	18	0.049	0.652	6"
STIN-78166	7/8"	16	0.065	0.745	6"
STIN-78186	7/8"	18	0.049	0.777	6"
STIN-1166	1"	16	0.065	0.870	6"
STIN-1186	1"	18	0.049	0.902	6"
STIN-1206	1"	20	0.035	0.930	6"
