battery operated torque wrench

▸ LCD digital display, automatic shutdown when the set value is reached, and the output accuracy is within ± 5%.
▸ 1 BV brushless motor is adopted, which is maintenance free, compact and easy to carry.
▸ With torque compensation function, even if the power decreases, the output accuracy can be guaranteed.
▸ After tightening, the wrench automatically reverses , and the wrench can be pulled out directly, which is more convenient.
▸ With intelligent recommendation function, select bolt specification and grade, and automatically recommend torque value.
▸ Rotatable power handle with brake locking mechanism, convenient and safe.
▸ SBT-14 is set at 1OOOnm, about 200 pieces are tightened , and the charging is completed within 90 minutes.

 LCD & Butto

LCD & Butto

 LCD & Butto

Standard Configuration : 2*8Ah Battery
And 1*Fast Charging

 LCD & Butto

Package

 LCD & Butto

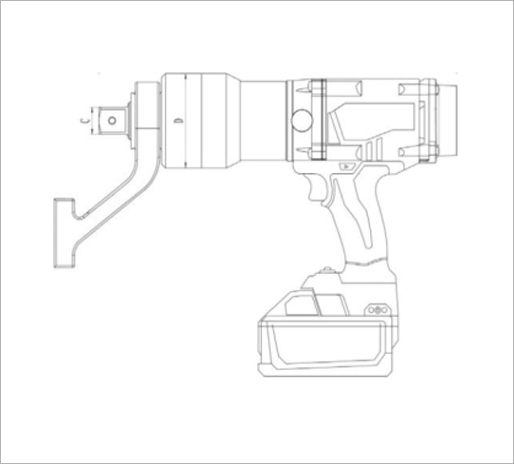

Dimension Diagram

 LCD & Butto

SBTW Used for disassembly and assembly of subway track bolts

Model

SQ Drive

Torque Range (Nm)

Speed RPM

Weight
kg

Size
(mm)

Size B
(mm)

Size C
(mm)

Size D
(mm)

SBT 07

3/4 ”

230-700

13

3.5

231

63

67

262

SBT 14

3/4 ”

300-1400

10.5

3.5

231

63

67

262

SBT 20

1”

400-2000

6

4.0

244

63

69

262

SBT 40

1 ”

800-4000

3

6.0

285

69

81

266

SBT 70

1.5 ”

1350-7000

1.5

8.8

295

95

95

272


Remark : Free speed in no load Speed; The above weight does not include the reaction Arm and battery.
The Standard the battery weight is 1kg / piece.
