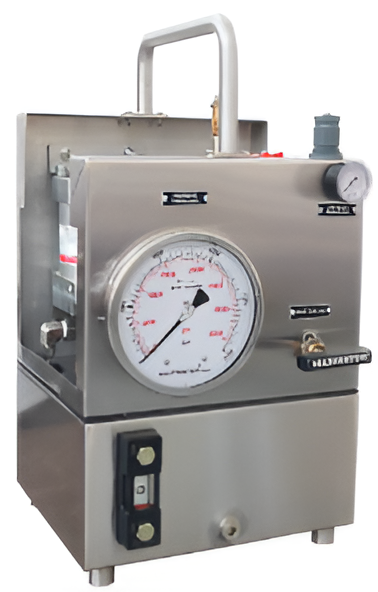

Bhartiya Air Operated Tensioner Pump (BATP)

The air operated powerpack for bolt tensioner BATP-1500 are designed to meet the highest technical and safety requirements of high pressure equipment.

Technical Features :

» Stainless Steel Frame: The hydraulic unit is installed in a weather proof stainless steel protection frame.
» Logical Control Panel: Logical layout design engraved for easy operation.
» Calibrated Pressure Gauge: Calibrated 150mm (6”), liquid filled, SS Frame, 2500 bar rating pressure gauge with dual reading of bar & psi.
» Complete Air System: System includes FRL Unit, air pressure gauge and control knob for safe air control and supply.
» Higher Operating Pressure: Pump has max working pressure of 1500 bar to cover all bolt tensioning applications.
» Light Weight: Unit weighs only 18 Kg and measures 450mm x 340mm x 480mm.
» Lower Input air Pressure: Higher pressure ratio of 1 : 350 ensures less input air pressure for operation.
» Quick Connect Outlet: Pump comes fitted with a quick connect outlet for easy connection of hydraulic hose.

Optional Accessories:

» High pressure hose
» High pressure QRC (Quick Release Coupling)
» Digital Pressure Gauge
