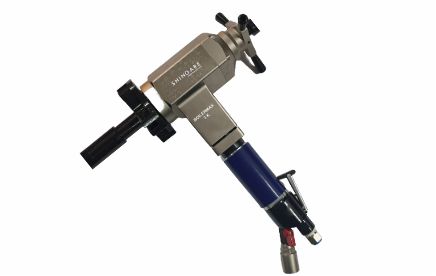

The pipe beveling achine BOILERMAX 3K is a pipe beveling machine able to lock pipes having internal diameter between 28 and 76 mm (1”-3”).

Credit to the light weight and its easy handling, the BOILERMAX 3K is indicated for prefabrication, for jobs on boilers and for maintenance in power station shut-downs.

RANGE:

Pipe beveling machine for pipes 0,90″-4,25″ Tube ID.

MATERIALS:

Carbon steel, Stainless steel, Duplex, Inconel, others

FUNCTIONS:

Beveling, Facing, Counterboring.

FEATURES:

BOILERMAX 3K	MODEL
	ELECTRIC	PNEUMATIC
Loacking Range (ID)	28mm to 76mm	28mm to 76mm
Idle Speed (RPM)	80	115
Torque (Nm)	80	55
Feeding Stroke(mm)	40	40
Pneumatic Motor Power (HP)	-	0.72
Air Consumption (CFM)	-	35-40
Air Pressure (BAR/PSI)	-	6(90)
Air Hose Connection(BSP)	-	1/2
Electric Motor Mower(Watt)	1000	-
Voltage(Volt)	220/110	-
Frequency(Hz)	50	-
Max Noise Level (DB)	75	75
Weight(kg)	9.8	8.5
