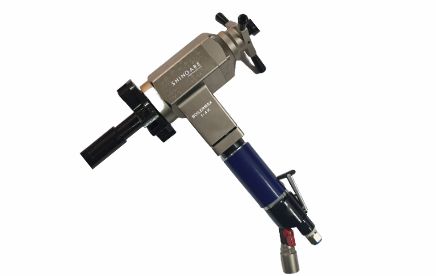

The pipe beveling machine BOILERMAX 1-4K is a pipe beveling machine able to lock pipes having internal diameter between 23 and 108 mm (0,90″ - 4,25″)..

Credit to the light weight and its easy handling, the BOILERMAX 1-4K is indicated for prefabrication, for jobs on boilers and for maintenance in power station shut-downs..

RANGE:

Pipe beveling machine for pipes 0,90″ - 4,25″ Tube ID.

MATERIALS:

Carbon steel, Stainless steel, Duplex, Inconel, others

FUNCTIONS:

Beveling, Facing, Counterboring..

FEATURES:

BOILERMAX 1-4K	MODEL
	ELECTRIC	PNEUMATIC
Loacking Range (ID)	23mm to 108mm	23mm to 108mm
Idle Speed (RPM)	80	70
Torque (Nm)	145	140
Feeding Stroke(mm)	40	40
Pneumatic Motor Power (HP)	-	1.35
Air Consumption (CFM)	-	55-60
Air Pressure (BAR/PSI)	-	6(90)
Air Hose Connection(BSP)	-	1/2
Electric Motor Mower(Watt)	1100	-
Voltage(Volt)	220/110	-
Frequency(Hz)	50	-
Weight(kg)	9.5	-
