Portable Pneumatic Tube Cleaners BPTC-400

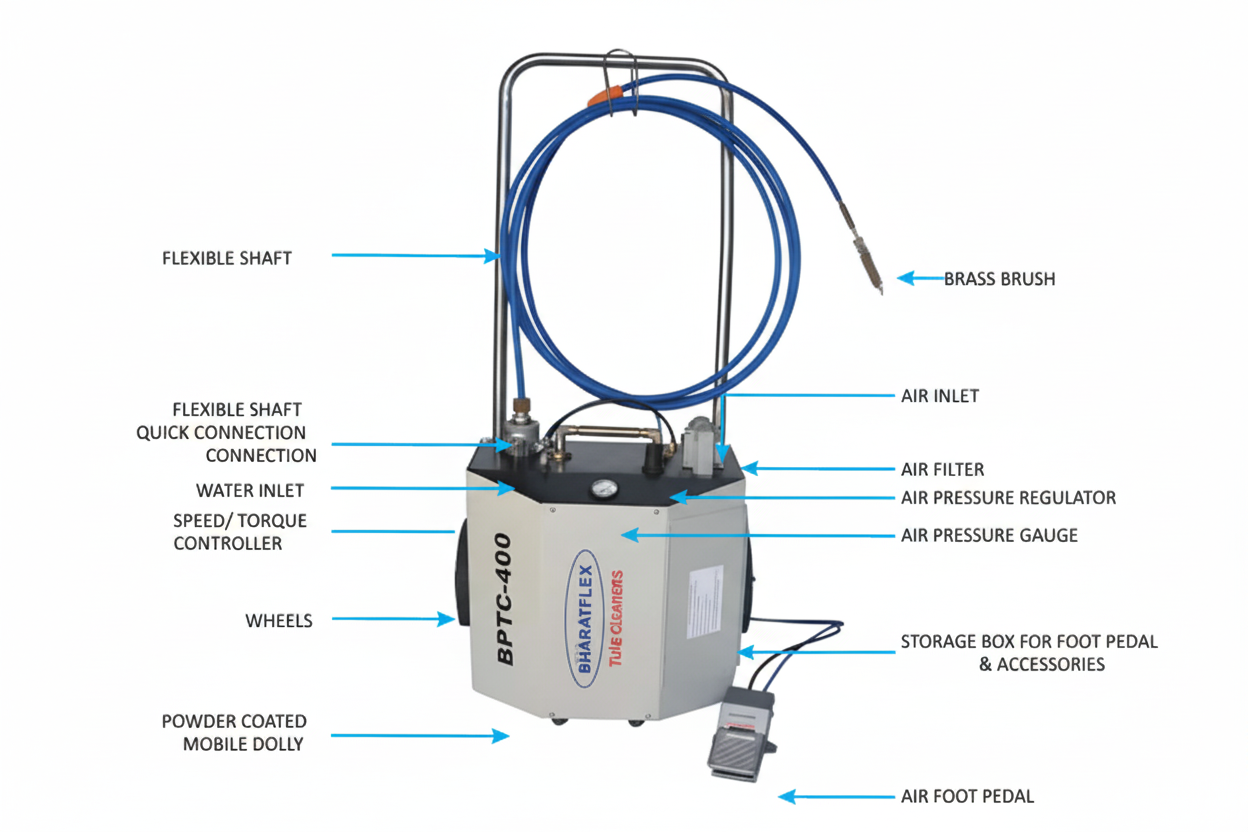

BHARTIYA Model BPTC-400 Extra Heavy Duty Pneumatic Tube Cleaners Machine includes lubricator, regulator, air filter, adjustable speed/torque control, mobile dolly, air foot pedal and tool storage box.

The BPTC-400 uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. For wet applications as the shaft rotes inside at watertight nylon casing, the unit feeds water through the casing to the cleaning tool. A foot pedal controls shaft rotation and flow. While the operator feeds the rotating shaft assembly through the tube, the water flushes out deposits as they are loosened.

Features :

• Shock Resistant - Excellent for applications where use of electric equipment is hazardous.
• Versatile - Interchangeability of different size flexible shafts and tube cleaning tools.
• Speed/Torque control - Shaft rotation speed can be set at optimum for each application.
• No Tooling - Quick disconnection of flexible shaft.
• Time Saving - Simultaneous water flush to remove deposits from tubes.
• Cleanliness - Foot switch for operator's convenience to activate both shaft rotation and water flow to reduce water consumption and make the working area clean.
• Compact - Lightweight, easy to operate inside drum.

Tube I.D

Tube Cleaner Model No.

Motor Power

Motor Speed RPM

Air Supply

Weight

Dimension

Mm

Inch

HP

KW

Min

Max

Lbs.

Kg.

High

Wide

Deep

6.4 - 38.1

1/4"-1.1/2"

BPTC-400

4

3

0-3000

60 psi @ 15 cfm

90 psi @ 70 cfm

66

30

38 " (975mm)

22 " (560mm)

16 "(406mm)
