Available with a choice of Electric - BTPP System or Pneumatic - BPPP System for hazardous, explosive
working environments.

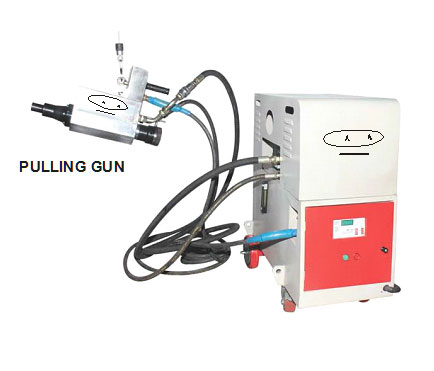

Pulling gun communicates with power pack via DC remote control. This ensures safely and eliminates the
need of electrical cord between pump and gun that other manufacturers provide.
Microprocessor controls on power pack and gun ensure trouble free life.
Low setup time and ease of operation.
Removes tube without any damage to tube sheet.
High power & High speed automatic cycling, for highest speed of pull available worldwide.
Auto switchover from low pressure high flow to high pressure low flow on load and again back to low
pressure high flow when load is released.
Automatic slow start feature to minimize risk of breaking tubes and to conserve consumables.
Compact design of Power pack and Gun.
Interchangeable pulling guns with same Powerpack. 15 ton gun for light duty high speed work, 30 ton gun
for heavy duty tube pulling and 45 ton gun for tubes up to 3" O.D.
Significant saving of time and money over conventional system.
Low maintenance cost and worldwide availability of components.
Unit is portable with handle and mounted on four wheels for easy handling.
Pulls up to 3" OD tubes continuously, pulls up to 4" O.D. stub.
Unit will pull tubes continuously through the gun effortlessly, needing only one man for operation.
Totally heavy steel metal body with duly power coated of power pack or stainless steel body can be
provided for longer corrosion free life (Optional)
