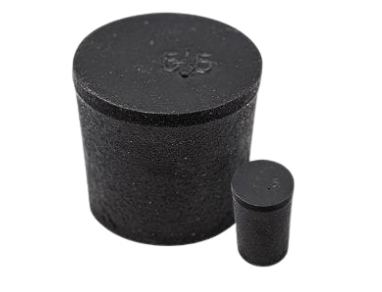

Bhartiya Industries is the leading Manufacturer & Exporter of various engineering goods such as Low-pressure rubber tapered tube plugs offer a cost-effective alternative to more costly tube plugs for temporary or low-pressure applications. These plugs, made of neoprene, are typically used for low-pressure isolation or vacuum testing in combination with our Vacuum Leak Detector.
Reusable Low-Pressure Rubber Tube Plugs for Isolation or Vacuum Testing Applications. FEATURES:
EATURES:
| Tube O.D | Gauge | Model No. | Dimension (in) + / -.005 | Dimension (mm) + / -.005 | ||||
| "A" SMALL | "B" LARGE | "L" LENGTH | "A" SMALL | "B" LARGE | "L" LENGTH | |||
| 1/2 | 14-24 | TP - 12 - R | 0.313 | 0.500 | 0.875 | 7.950 | 12.700 | 22.225 |
| 5/8 | 13-24 | TP - 15 - R | 0.406 | 0.594 | 1.000 | 10.312 | 15.088 | 25.400 |
| 3/4 | 11-17 | TP - 19 - R | 0.500 | 0.656 | 12.700 | 16.662 | ||
| 3/4 | 14-24 | TP - 19-1 - R | 0.563 | 0.750 | 14.300 | 19.050 | ||
| 7/8 | 11-17 | TP - 22 - R | 0.625 | 0.781 | 15.875 | 19.837 | ||
| 7/8 | 15-24 | TP - 25 - R | 0.719 | 0.938 | 18.263 | 23.825 | ||
| 1 | 10-19 | |||||||
| 1 | 11-24 | TP - 28- R | 0.750 | 1.000 | 19.050 | 25.400 | ||
| 1-1/8 | 7-14 | |||||||
| 1-1/8 | 13-19 | TP - 28-1 - R | 0.906 | 1.063 | 23.012 | 27.000 | ||
| 1-1/8 | 16-24 | TP - 31 - R | 0.969 | 1.109 | 24.613 | 28.169 | ||
| 1-1/4 | 10-13 | |||||||
| 1-1/4 | 13-24 | TP - 31-1 - R | 1.031 | 1.250 | 26.187 | .31.750 | ||
| 1-3/8 | 7-16 | TP - 34 - 1 - R | 1.063 | 1.344 | 27.000 | 34.138 | ||
| 1-3/8 | 14-24 | TP - 34 - R | 1.188 | 1.438 | 30.175 | 36.525 | ||
| 1-1/2 | 7-20 | TP - 38 - 1 - R | 1.125 | 1.500 | 28.575 | 38.100 | ||
| 1-1/2 | 14-24 | TP - 41 - R | 1.312 | 1.625 | 33.325 | 41.275 | ||
| 1-5/8 | 10-20 | |||||||
| 1-5/8 | 16-24 | TP - 41 - 1 - R | 1.406 | 1.688 | 35.712 | 42.875 | ||
| 1-3/4 | 10-20 | TP - 44 - R | 1.469 | 1.750 | 37.313 | 44.450 | ||
| 1-3/4 | 12-24 | TP - 44 - 1 - R | 1.500 | 1.813 | 38.100 | 46.050 | ||
| 2 | 7-15 | TP - 50 - R | 1.625 | 1.969 | 41.275 | 50.013 | ||
| 2 | 12-20 | TP - 50 - 1 - R | 1.750 | 2.078 | 44.450 | 52.781 | ||
| 2 | 18-24 | TP - 57 - R | 1.875 | 2.203 | 47.625 | 55.956 | ||
| 2-1/4 | 8-18 | |||||||
| 2-1/2 | 8-14 | TP - 63 - 1 - R | 2.000 | 2.469 | 50.800 | 62.713 | ||
| 2-1/2 | 12-18 | TP - 63 - R | 2.125 | 2.500 | 53.975 | 63.500 | ||
| 2-3/4 | 6-13 | TP - 69 - R | 2.281 | 2.688 | 57.937 | 68.275 | ||
| 2-3/4 | 12-18 | TP - 69 - 1 - R | 2.438 | 2.969 | 1.325 | 61.925 | 75.413 | 34.925 |
| 3 | 6-16 | |||||||
| 3 | 12-18 | TP - 76 - R | 3.000 | 3.500 | 1.500 |
76.200 | 88.900 | 25.400 |
| 3-1/2 | 13-18 | TP - 88 - R | 3.425 | 4.000 | 1.500 | 82.550 | 101.600 | 38.100 |
| 4 | 7-18 | TP - 101 - R | 3.500 | 5.000 | 2.000 | 88.900 | 127.000 | 25.400 |
